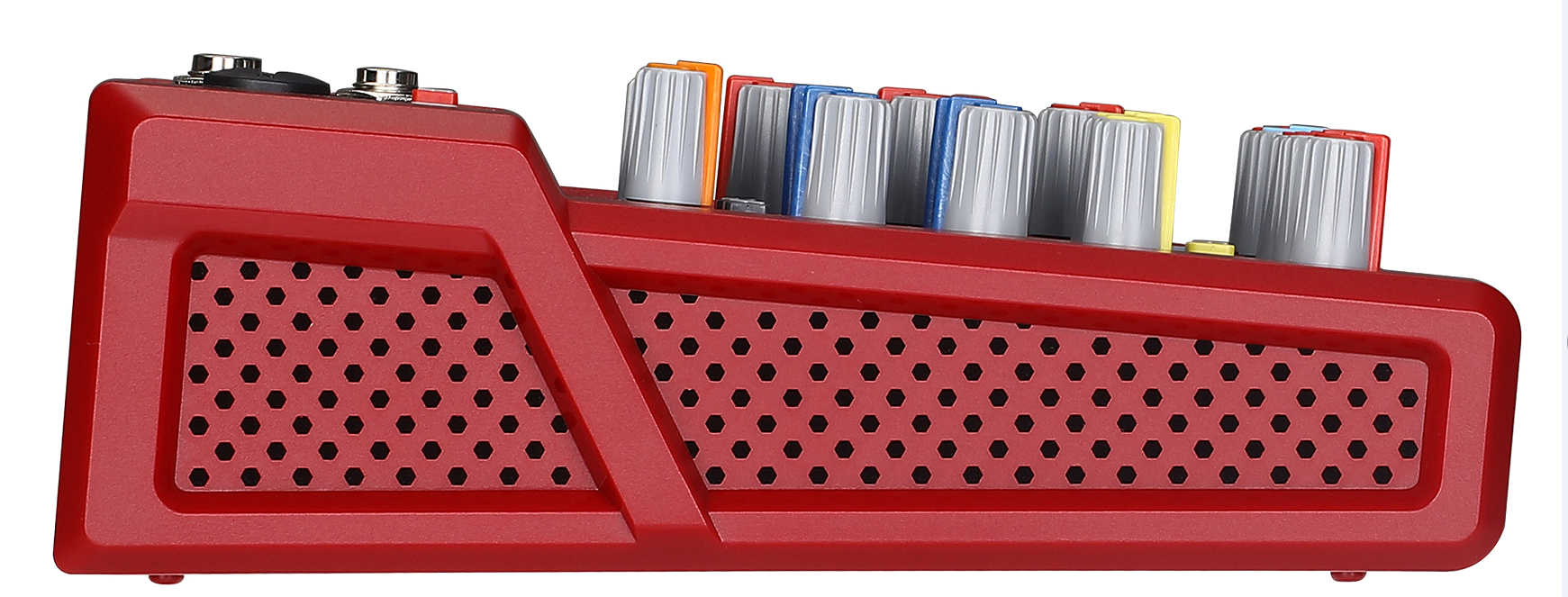

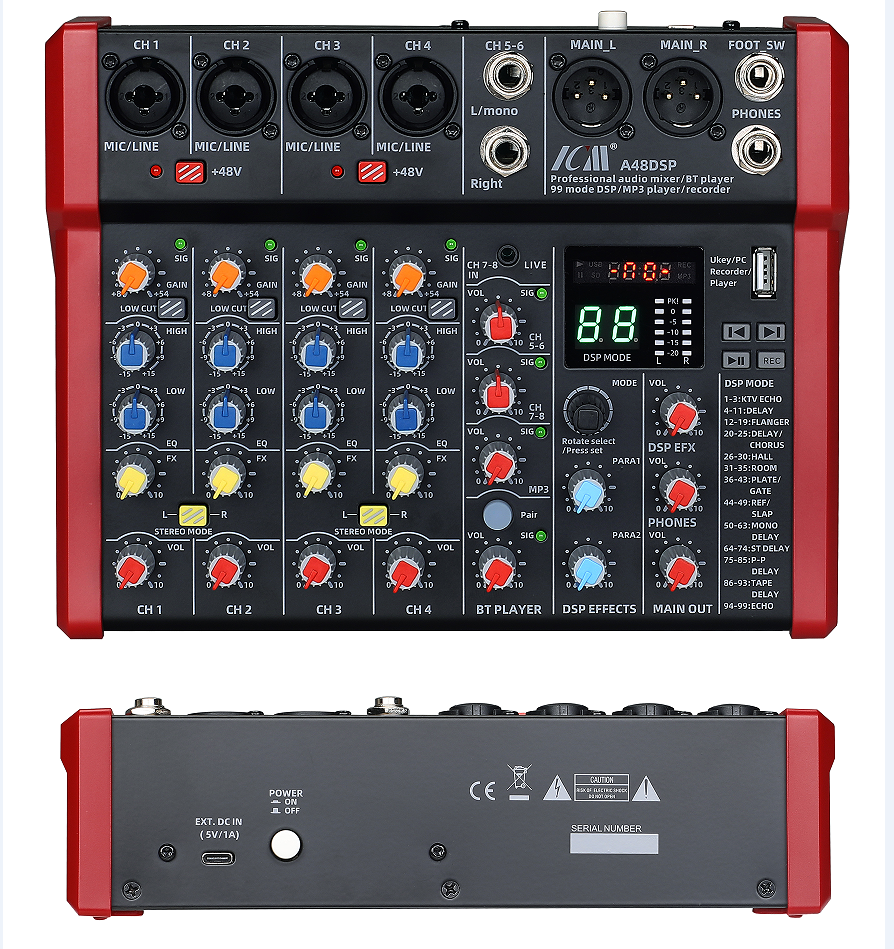

Product Name: 6 Channel Mixer
Model : A48DSP
Brand: ICM
Warranty:12 Months
**RTB warranty 6 months commecial**
SPECIFICATIONS
Maximum input level: MIC +10dBu / Line +22dBu;
Maximum output level:
XLR +22dBu;
TRS +20dBu
Master meters: 6 segment -20dB to peak;
Channel meters: 1 LED signal indication;
Frequency response: 20Hz to 22KHz ±1dB;
CMRR (MIC 1kHz): ＞75dB;
THD+N : <0.05% (Channel to mix out);
Crosstalk (at 1kHz: Fader shutoff) : ＞80dB;
Noise, (rms 22Hz to 22KHz) :
EIN -122dBu /
Residual output noise ＜-86dBu;
L/R main mix noise ＜-76dBu;
Mono channel :
XLR balanced, pin2 hot/pin3 cold, 2K ohm, Sensitivity -60 to +10 dBu, phantom +48V;
TRS balanced, tip hot/ring cold, 10K ohm, Sensitivity -20 to+20 dBu
MONO channel EQ:
HF, shelving, +/-15dB, 12KHz;
LF, shelving, +/-15dB, 80Hz;
Stereo channel:
6.35mm TRS unbalanced, tip hot, 10K ohm, Sensitivity -20 to +14 dBu;
3.5mm TRRS unbalanced, tip/L,ring1/R, ring2/GND, sleeve/output,10Kohm, Sensitivity -20 to +14 dBu;
DSP audio effects processor: 99 mode/24bit/48KHZ, LED display;
MP3 player/recorder: Audio decoding: MP3/WAV/APE/FLAC; LED display;
USB 1.1 audio interface
Bluetooth: Compliant with Bluetooth V5.1+BR+EDR+BLE specification;
Max input power : DC 5V/2A 10watts;
**There will be NO remote controller although the manual might say it comes with the mixer**
