Product Name: Power Amplifier
Circuit Type: CLASS D
Model :DX10:4 Series
Brand Name: FEDYCO
Color : BLACK / YELLOW
Warranty: RTB 12 Months Domestic/ 6 months Commercial
-------------------
Features:
It uses a new generation of FSIC technology, delivering high-power output with a minimum load of 2 ohms.
The unit operates stably within a wide voltage range of 100V–260V, ensuring consistent high performance and reducing concerns about unstable power supply.
PFC technology improves amplifier efficiency and reduces current consumption.

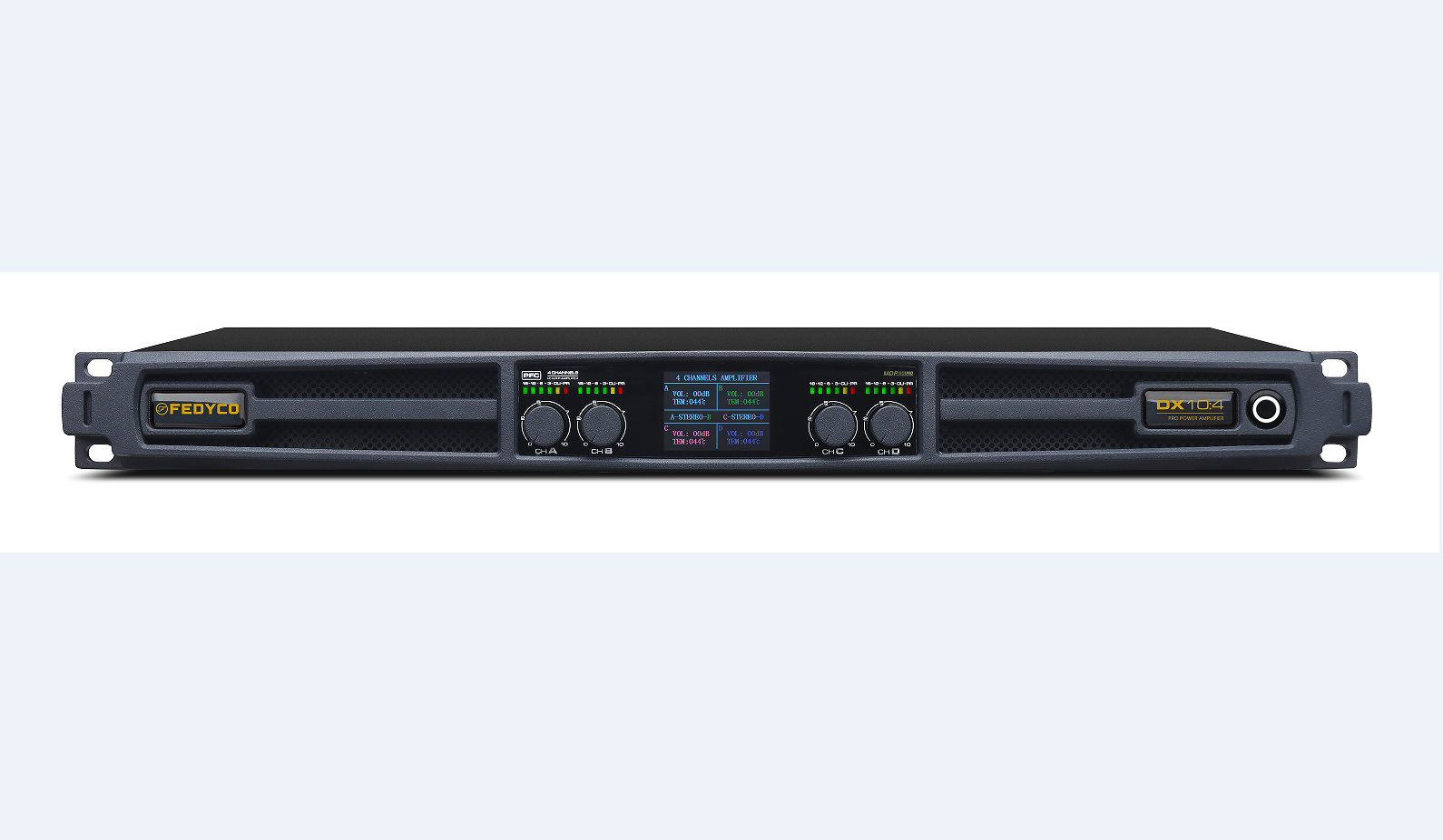

It features a specially designed housing with a distinctive appearance, along with a 2.0-inch full-view (IPS) color TFT display. The screen shows volume, temperature, and connection mode status for each channel, making on-site monitoring and diagnostics more convenient.
Model:DX10:4
Stereo Power Output
8O/FTC20HZ-20KHZ :4 x 1000w
4O/FTC20HZ-20KHZ :4 x 1500w
2O/FTC20HZ-20KHZ :4 x 1500w
Bridged (2/1 Channels)
8O/FTC20HZ-20KHZ : 2x2000W
4O/FTC20HZ-20KHZ : 2x3000W
Peak power@2O : 4x1000W
Specifications
S/N (20HZ-20KHZ) 8O 101DB
THD (@8O 1KHZ) <0.5%
Input Impedance 20KO
requency Response 20HZ-20KHZ
Damping Factor >5000
Cooling System 4/5Fans

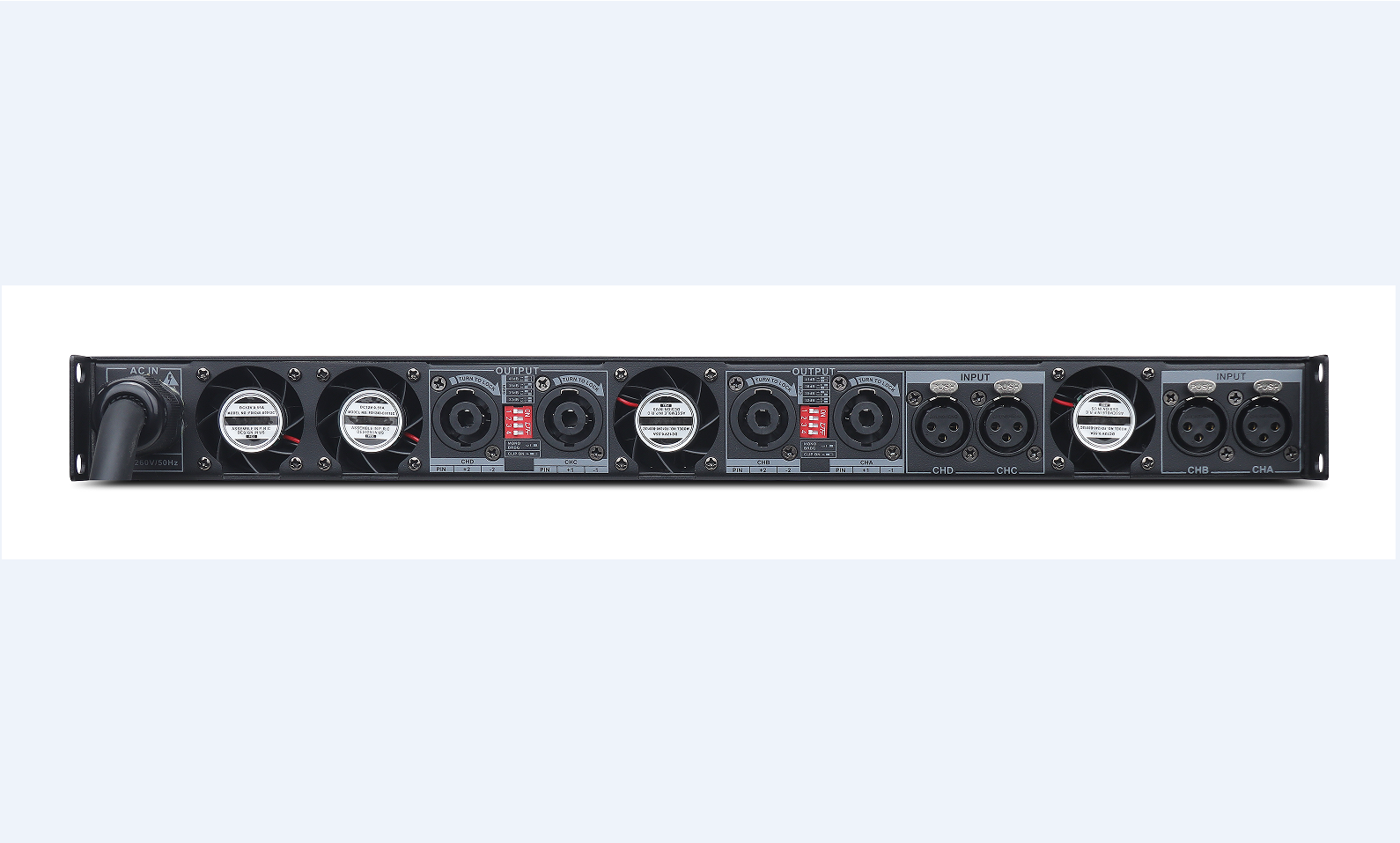

Input/Output Connection:Input:Balance Female XLR,Link out:XLR male
Control:Volume Control for each channel.Stereo/Parallel/Bridge,Bridge Denote,Low cut
Indicator light:Power:Active Signal :Clip
Protection: Short,Auto Limited,Over load AC/DC protection
Power Supply :100V-260V
-------------------
