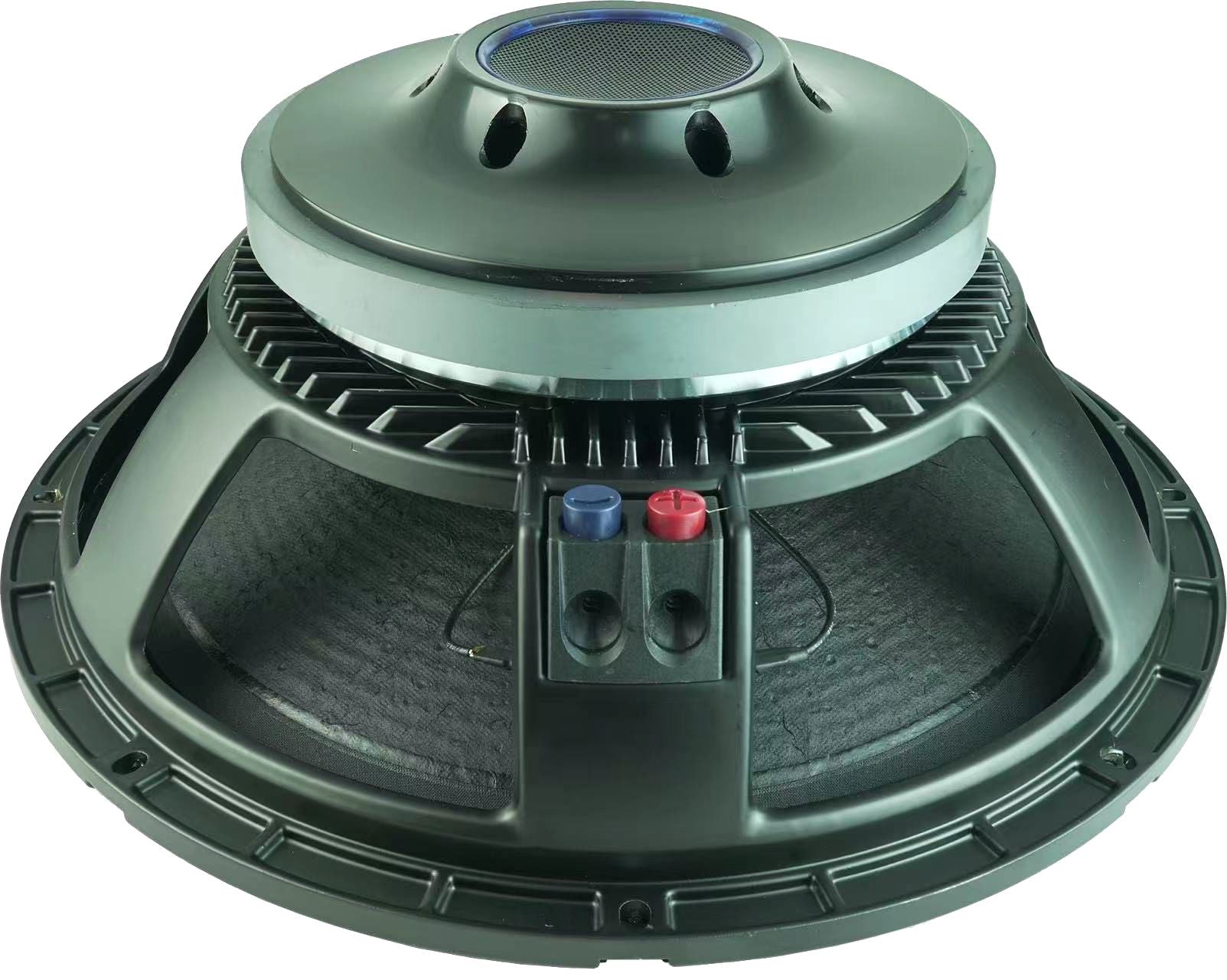

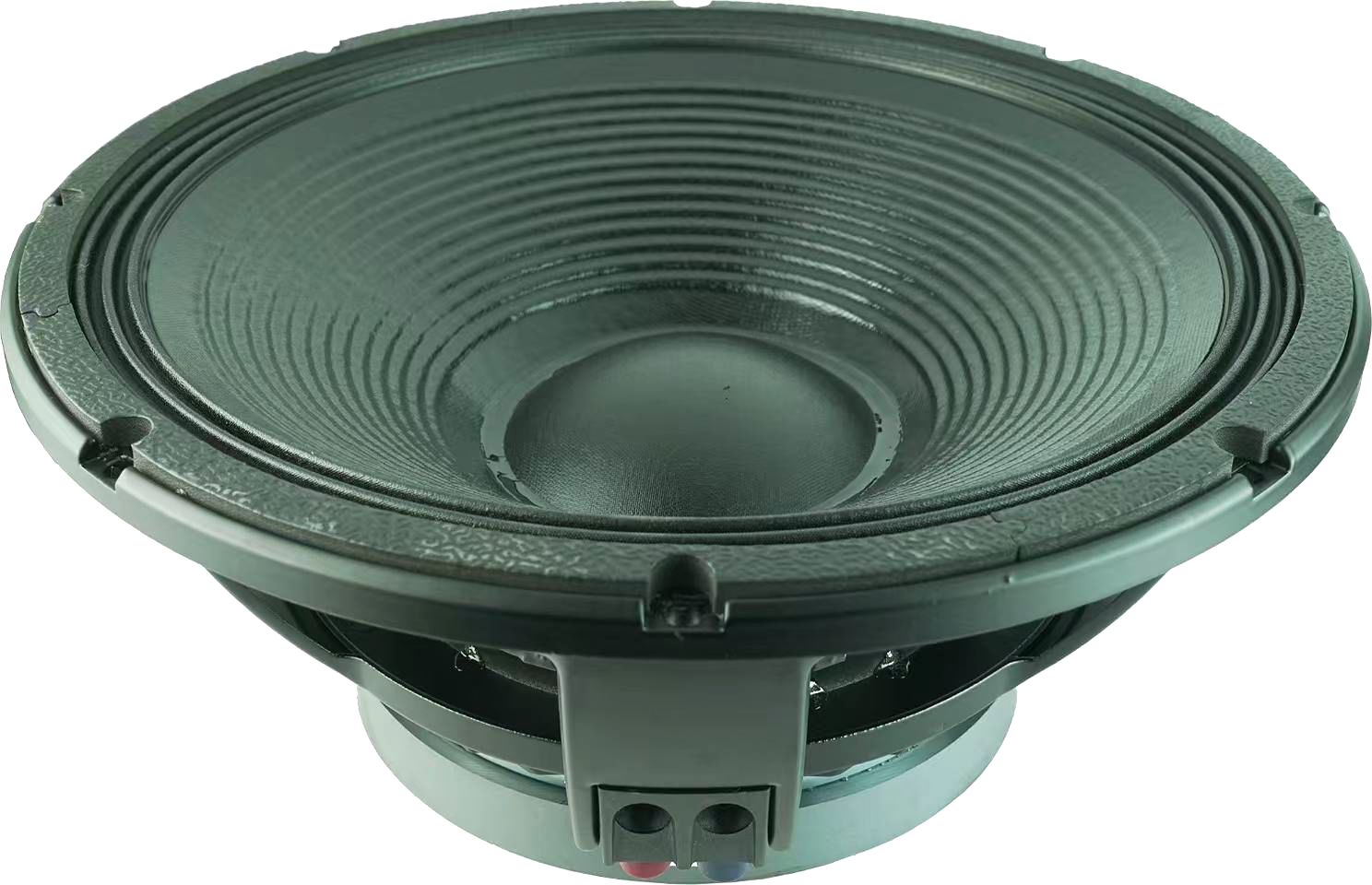

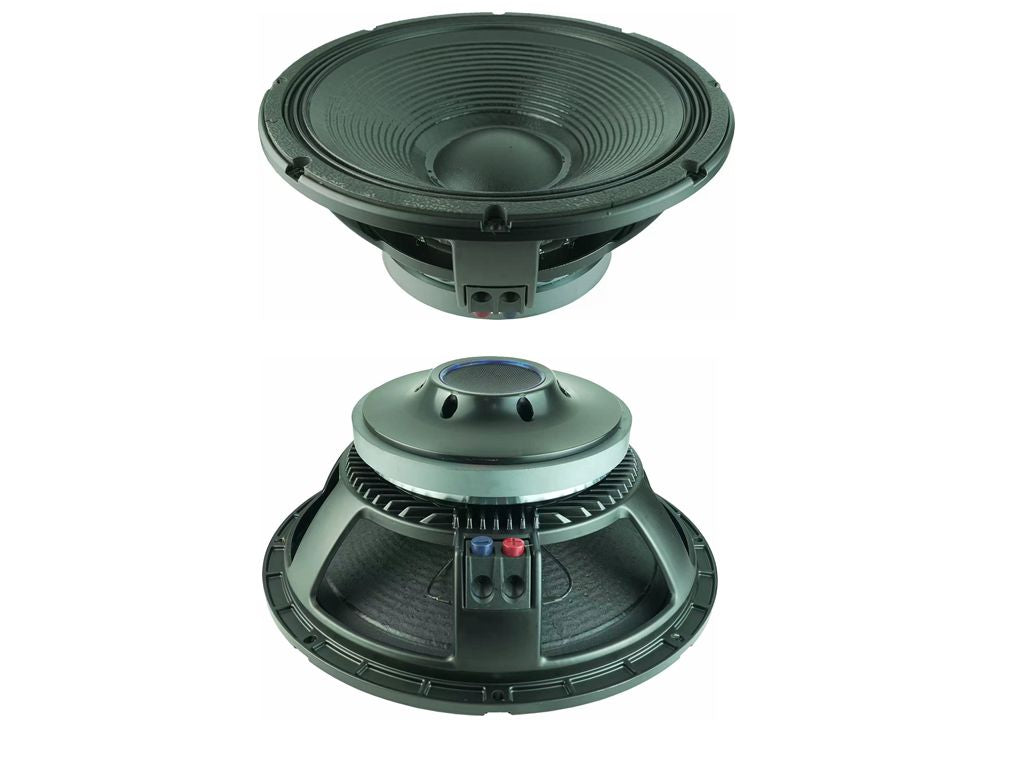

Product Name: 15 inch Woofer
Model : 15H400
brand Name: RZS
Color : Black
Warranty: RTB 10 months
-------------------------
1. Parts speaker for replacement
2. With Aluminum Frame
3. Unique Design
4. Excellent Bass
=================

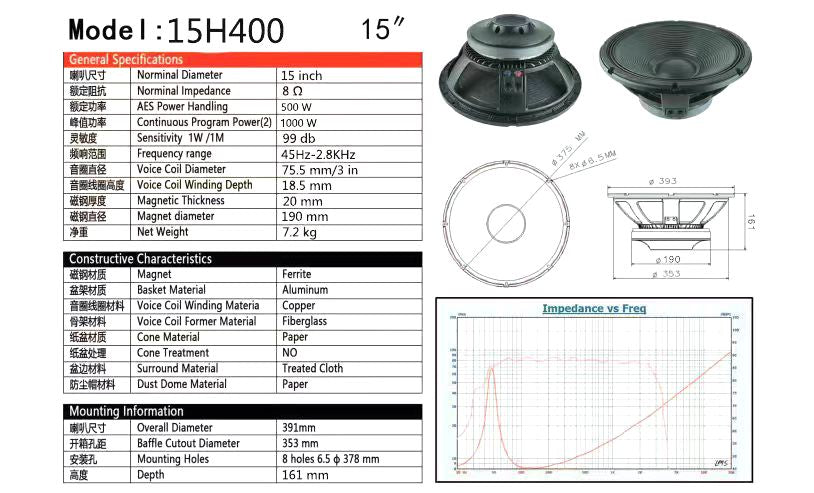

General Specifications
=================
Rted Power AES(1) :500W
Continuous Program Power(2):1000W
Nominal Diameter:15 inch
Impedance :8 ohm
Sensitivity @ 1W/1m:99 db
Frequency range:45Hz-2.8KHz
Voice Coil Diameter:75.5 mm/3.0 inch
Voice Coil Winding Depth:18.5 mm
Magnetic Thickness:20 mm
Magnet diameter:190 mm
Weight :7.2Kg
===============
Material:
Magnet :Ferrite
Basket Material:Aluminum
Voice Coil Winding Materia:Copper
Voice Coil Former Material :Fiberglass
Cone Material:Paper
cone Ireatment:NO
Surround Material:Treated Cloth
Dust Dome Material:Paper
==============
Mounting Information
Overall Diameter:391mm
Baffle Cutout Diameter:353 mm
Mounting Holes8 holes 6.5 /378 mm
Depth:16l mm
******************************************
